Introduction

TARDIS offers an easy and straightforward way to automatically calculate area under the peak, max intensity and various quality metrics for targeted chemical compounds in LC-MS data. It makes use of an established retention time correction algorithm from the xcms package and loads MS data as Spectra objects so it’s easily integrated with other tools of the Rformassspectrometry initiative.

See README for installation instructions.

This quick start guide will briefly demonstrate the main functionalities of TARDIS using the command line interface. For details on the GUI we refer to the gui_tutorial vignette. For more information we refer to the publication : https://pubs.acs.org/doi/10.1021/acs.analchem.5c00567.

File conversion

Input files need to be converted to the .mzML format and have to be centroided. Polarity filtering is done within TARDIS, so no polarity subsetting has to be performed when converting the files. For file conversion using MSConvert (ProteoWizard) we refer to to mzmine documentation: https://mzmine.github.io/mzmine_documentation/data_conversion.html

Loading data

The first step is creating a data.frame that describes the chemical compounds. Following columns at least need to be present for each compound:

  • A compound ID, a unique identifier
  • A compound Name
  • Theoretical or measured m/z
  • Expected RT (in minutes)
  • A column that indicates the polarity of the formed ion for that compound

Extra columns can be included in the file, but will be ignored by TARDIS unless otherwise indicated.

An input file (either .xlsx or .csv) can be converted to a correct data.frame using the createTargetList() function. Input parameters needed are: the path to the file, the patterns for positive and negative ionization, the polarity of interest, the columnn that contains the ionization mode and the other columns of interest.

id name mz ion rt
49 Valeric acid 103.07536 + 8.4
76 Malic acid 133.01424 - 1.21
82 Pyruvic acid 87.008769999999998 - 1.48
86 (R)-(+)-Methylsuccinic acid 133.04954000000001 + 4.2
89 Azelaic acid 187.09757999999999 - 8.77
91 Sebacic acid  201.11322999999999 - 9

The target data.frame is created using createTargetList(). For more info on how to use the function, check the help page: ?createTargetList

library(TARDIS)
#> Warning: replacing previous import 'S4Arrays::makeNindexFromArrayViewport' by
#> 'DelayedArray::makeNindexFromArrayViewport' when loading 'SummarizedExperiment'
targets <- createTargetList("vignette_data/targets.xlsx",
                            pos_pattern = "+",
                            neg_pattern = "-",
                            polarity = "positive",
                            ion_column = "ion",
                            columns_of_interest = c("id", "name", "mz", "rt"))

kableExtra::kable(head(targets))
ID NAME m/z tr
1 49 Valeric acid 103.07536 504.0
4 86 (R)-(+)-Methylsuccinic acid 133.04954 252.0
8 98 Urocanic acid  139.05020 79.8
9 169 L-Alanine 90.05496 51.6
10 170 L-Valine 118.08626 78.0
11 171 L-Leucine 132.10191 132.0

The files in which the targets need to be detected are:

list.files(path = "vignette_data/mzML/")
#>  [1] "230523s016_QC1_1.mzML" "230523s017_QC2_1.mzML" "230523s018_A081.mzML"
#>  [4] "230523s020_A254.mzML"  "230523s021_A158.mzML"  "230523s022_A521.mzML"
#>  [7] "230523s028_QC1_2.mzML" "230523s029_QC2_2.mzML" "230523s030_A043.mzML"
#> [10] "230523s031_A551.mzML"  "230523s032_A566.mzML"  "230523s033_A513.mzML"
#> [13] "230523s040_QC1_3.mzML" "230523s041_QC2_3.mzML"

The files are ordered in the folder by injection index, in this case, we have a total of 14 runs:two QC injections, followed by four sample injections, two QC injections, four sample injections and two QC injections.

Alternatively, instead of using file paths as input for TARDIS, the user can also use an MsExperiment object. Here it is necessary to include at least sample type in the sampleData to distinguish QC from sample runs.

IMPORTANT! The sampleData column has to be named type.

library(MsExperiment)
files <- list.files(path = "vignette_data/mzML/",full.names = TRUE)
ms_data <- readMsExperiment(files,
                            backend = Spectra::MsBackendMzR())
ms_data
#> Object of class MsExperiment
#>  Spectra: MS1 (15625)
#>  Experiment data: 14 sample(s)
#>  Sample data links:
#>   - spectra: 14 sample(s) to 15625 element(s).
sampleData(ms_data)$type <- c("QC",
              "QC",
              "sample",
              "sample",
              "sample",
              "sample",
              "QC",
              "QC",
              "sample",
              "sample",
              "sample",
              "sample",
              "QC",
              "QC")

Data with multiple scan windows

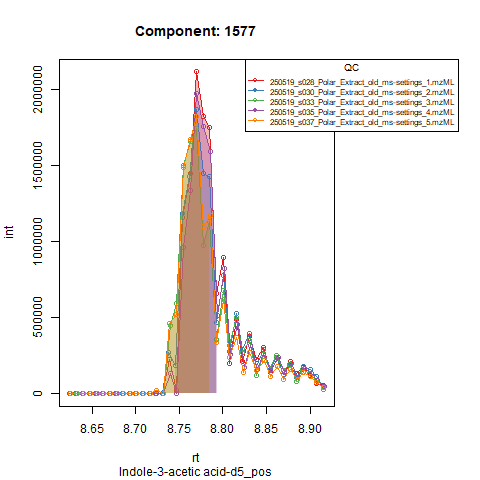

IMPORTANT! if your data contains multiple (overlapping) m/z scan windows, it is necessary to analyze these separately through the “mass_range” argument. If not, you will notice that peaks will have a sawtooth profile, because of the filtering of empty spectra within TARDIS.

knitr::include_graphics("vignette_data/plots/sawtooth.png")

Screening mode

First, we perform a screening step to check if our targets are visible within our m/z and RT windows.

I limited the selection to 10 targets: 5 internal standards and 5 endogenous metabolites.

targets = targets[targets$ID %in% c("1576","1577","1578","1583","331",
                            "7","9","131","179","183"),]

We can run screening mode using the argument screening_mode = TRUE in the tardis_peaks function.

For more details on the inputs of the function, please read the help page ?tardisPeaks

results <- tardisPeaks(file_path = "vignette_data/mzML/",
                        dbData = targets,
                        mass_range = NULL,
                        polarity = "positive",
                        output_directory = "vignette_data/output/screening/",
                        batch_positions = list(c(1,14)),
                        QC_pattern = "QC",
                        int_std_id = c("1576","1577","1578","1583","331"),
                        screening_mode = TRUE)
#> Performing retention time correction using 5 peak groups.

Or, as mentioned, the MsExperiment object can be used as input instead.

results <- tardisPeaks( lcmsData = ms_data,
                        dbData = targets,
                        mass_range = NULL,
                        polarity = "positive",
                        output_directory = "vignette_data/output/screening/",
                        batch_positions = list(c(1,14)),
                        QC_pattern = "QC",
                        int_std_id = c("1576","1577","1578","1583","331"),
                        screening_mode = TRUE)
#> Performing retention time correction using 5 peak groups.
#> Warning in .adjustRtime_peakGroupsMatrix(rt_raw, peakGroupsMatrix(param), :
#> Span too small for 'loess' and the available number of peak groups, resetting
#> to 0.8

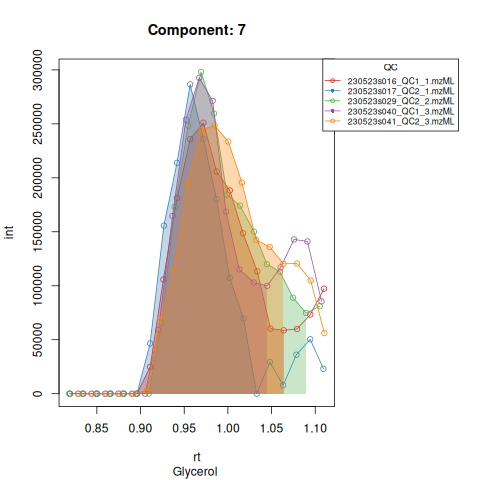

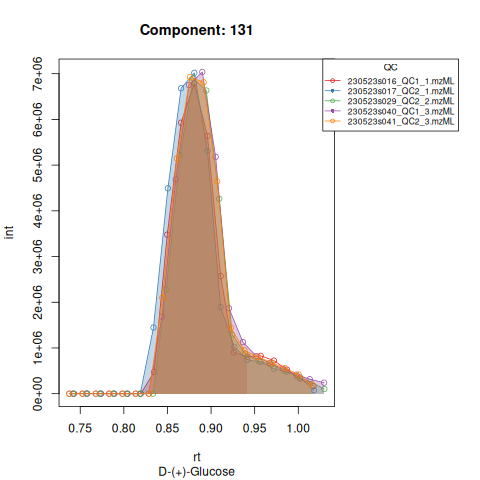

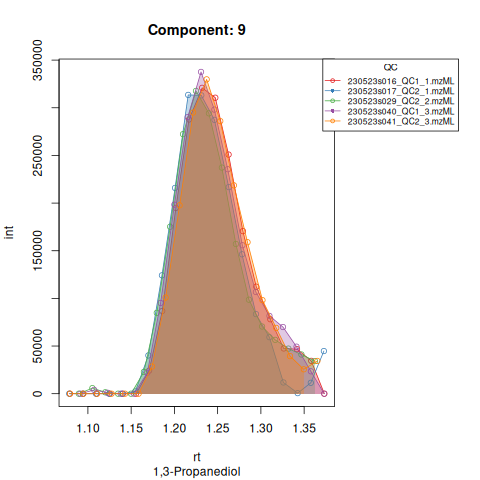

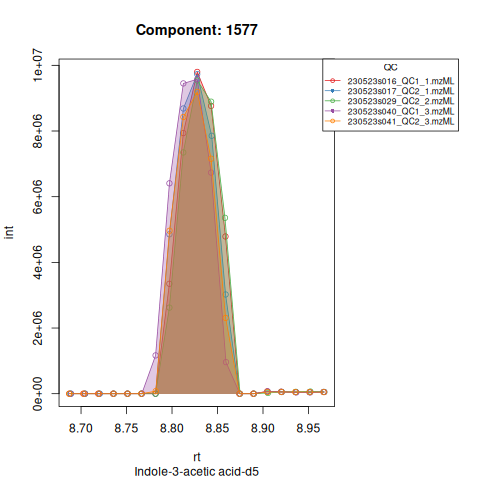

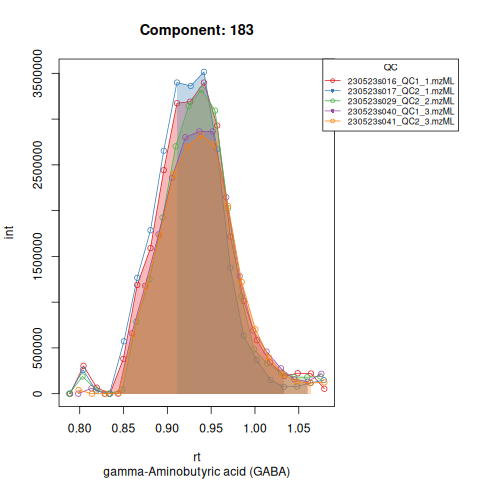

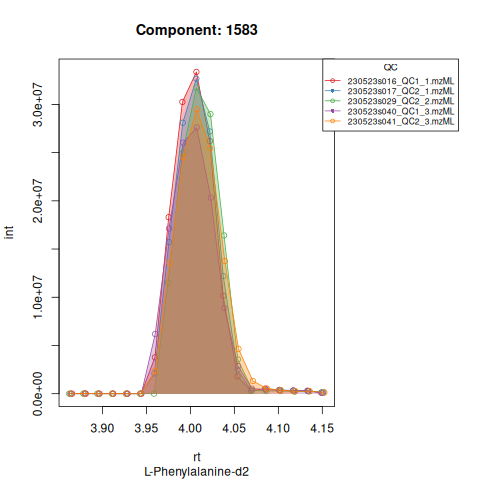

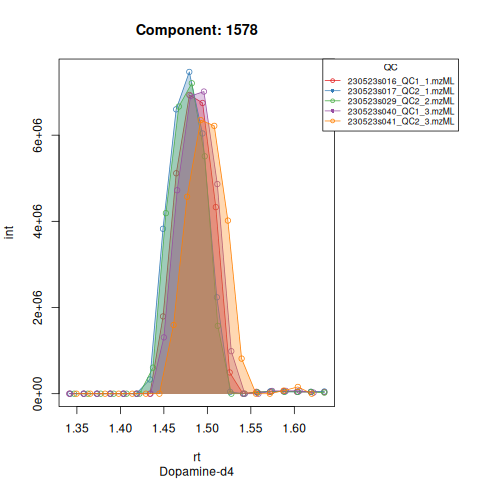

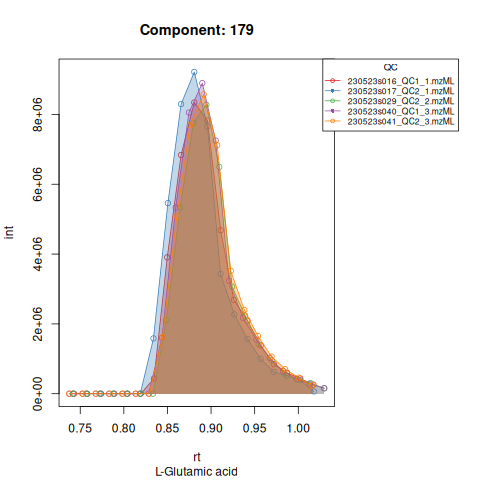

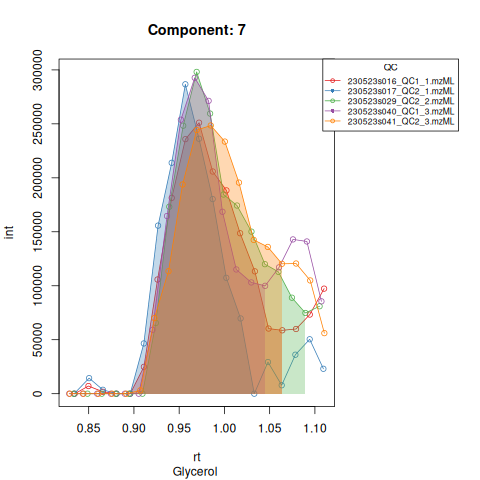

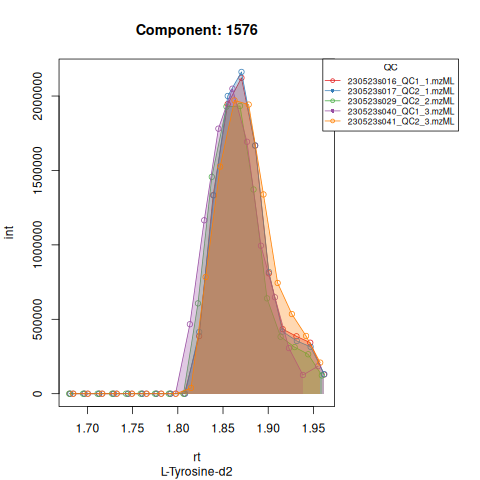

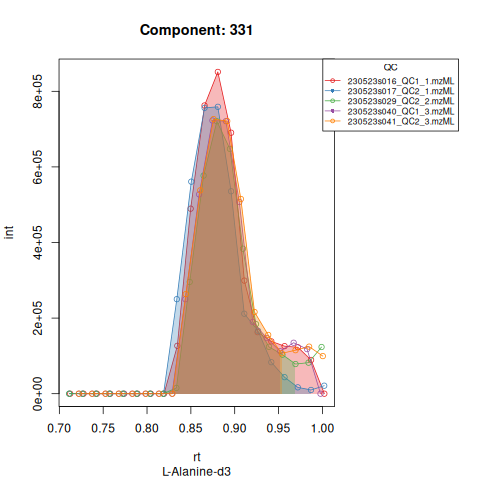

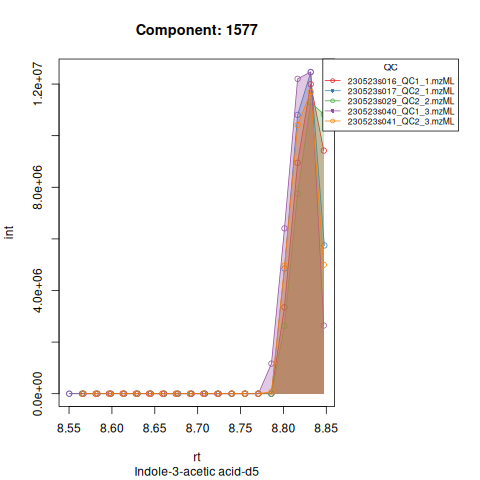

The resulting EICs are saved in the output folder and can be inspected:

knitr::include_graphics(c("vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_7.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_9.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_131.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_179.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_183.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_331.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_1576.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_1577.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_1578.png",
                         "vignette_data/output/screening/Diagnostic_QCs_Batch_1/Component_1583.png"
                         ))

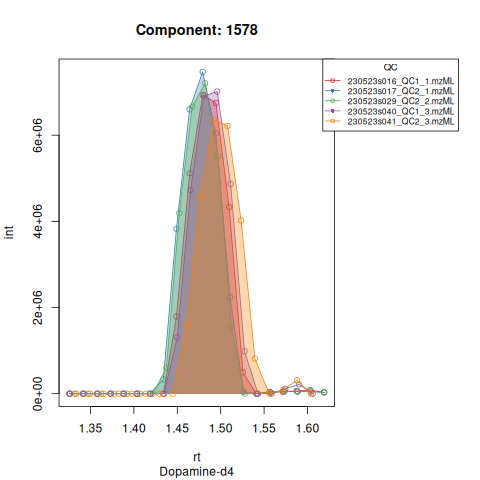

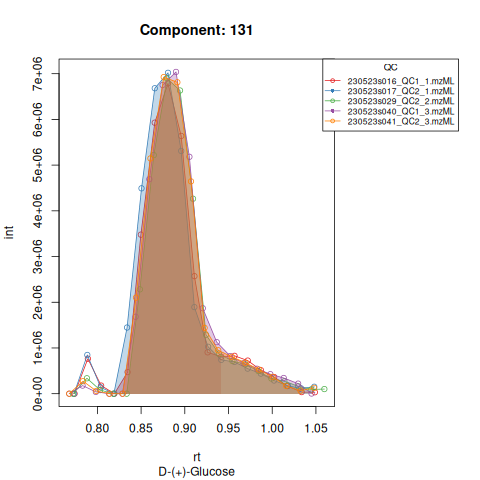

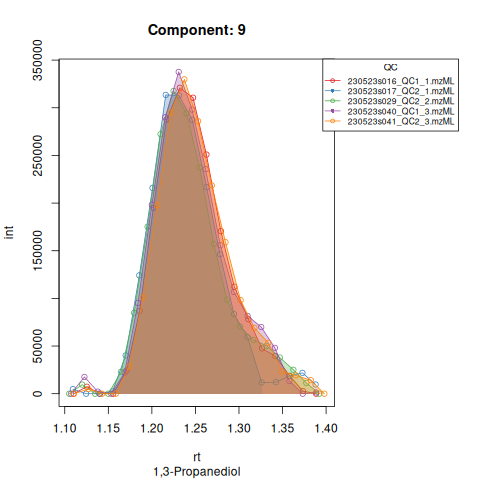

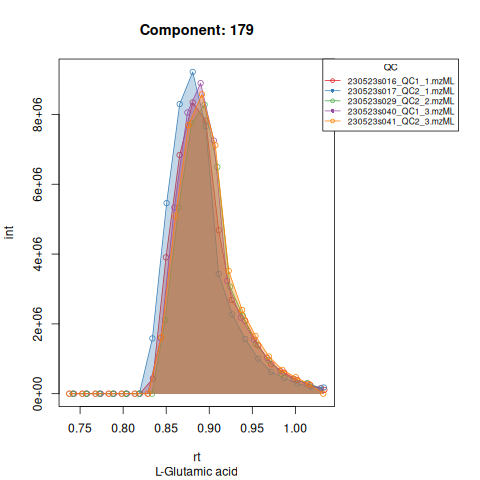

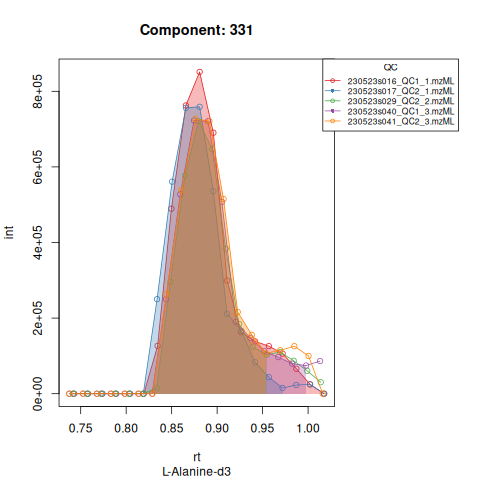

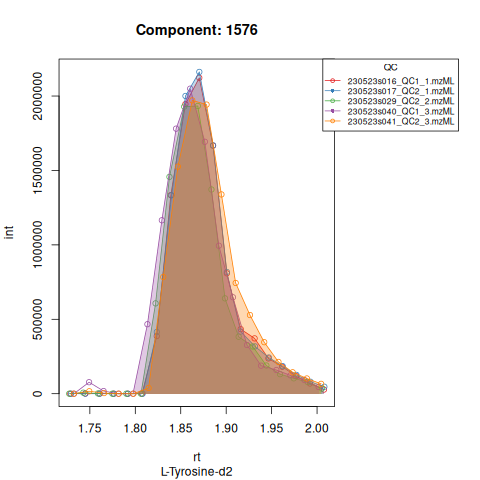

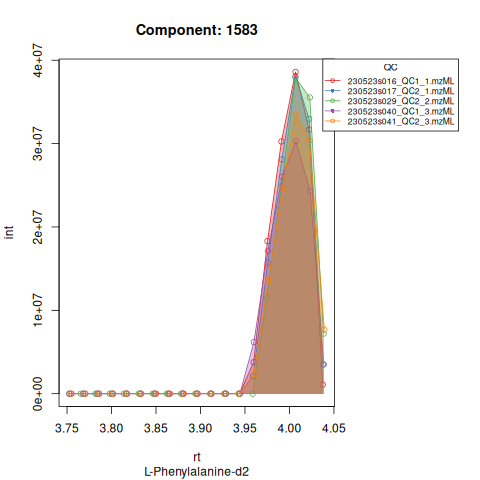

Based on the EICs we can see that detection and integration were successful, however,targets 1577 and 1583 are eluting towards the edge of our retention time windows, so we’ll adjust their expected retention times to the ones were we see the peaks eluting.

targets$tr[which(targets$ID == 1577)] <- 8.82 * 60
targets$tr[which(targets$ID == 1583)] <- 4 * 60

Peak detection

Now we can perform peak detection in all our runs by setting screening_mode = FALSE.

results <- tardisPeaks(lcmsData = ms_data,
                        dbData = targets,
                        mass_range = NULL,
                        polarity = "positive",
                        output_directory = "vignette_data/output/",
                        batch_positions = list(c(1,14)),
                        QC_pattern = "QC",
                        int_std_id = c("1576","1577","1578","1583","331"),
                        screening_mode = FALSE)
#> Performing retention time correction using 5 peak groups.
#> Aligning sample number 3 against subset ... OK
#> Aligning sample number 4 against subset ... OK
#> Aligning sample number 5 against subset ... OK
#> Aligning sample number 6 against subset ... OK
#> Aligning sample number 9 against subset ... OK
#> Aligning sample number 10 against subset ... OK
#> Aligning sample number 11 against subset ... OK
#> Aligning sample number 12 against subset ... OK

Results

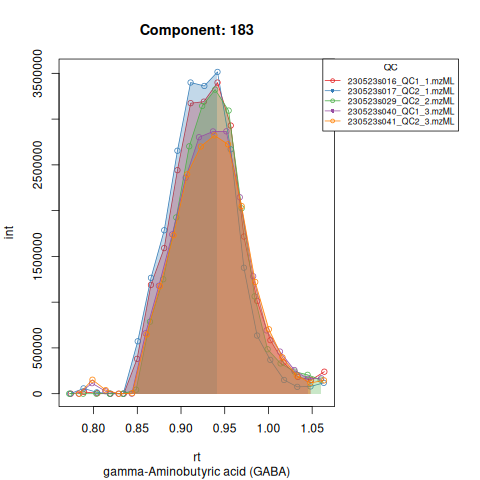

The resulting EICs are again saved in the output folder and can be inspected:

knitr::include_graphics(c("vignette_data/output/Diagnostic_QCs_Batch_1/Component_7.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_9.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_131.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_179.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_183.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_331.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_1576.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_1577.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_1578.png",
                         "vignette_data/output/Diagnostic_QCs_Batch_1/Component_1583.png"
                         ))

The results object is a list that contains a data.frame with the AUC of each target in each run and a tibble that contains a feature table with the average metrics for each target in the QC runs.

kableExtra::kable(head(results[[1]]))
Component 230523s016_QC1_1.mzML 230523s017_QC2_1.mzML 230523s018_A081.mzML 230523s020_A254.mzML 230523s021_A158.mzML 230523s022_A521.mzML 230523s028_QC1_2.mzML 230523s029_QC2_2.mzML 230523s030_A043.mzML 230523s031_A551.mzML 230523s032_A566.mzML 230523s033_A513.mzML 230523s040_QC1_3.mzML 230523s041_QC2_3.mzML
131 24020292 28183111 12404549 28647263 19778739 15973261 29269960 27130309 19605965 65198737 6319715 5151537 28820005 28614613
1576 8952766 9009793 10069135 8740816 9832668 10029678 8809010 8410986 8384713 10408981 9276249 9122995 9147050 9265387
1577 31972288 31621393 33184503 29541077 36105805 33162748 31866205 31143734 28043811 37897281 28021253 30422008 31651442 29564982
1578 23234773 24457534 34549456 30473747 26068231 28313704 22667409 23067483 27788464 34880113 28988999 28398306 23927010 22168021
1583 115889438 112737670 132212474 125748268 122671293 130028353 108772009 112322858 113154298 129791199 121465742 79729532 104780064 109711464
179 36945872 38625629 25433620 9928833 26196397 25567778 38382311 35189159 25537917 22157571 14137787 16480727 37429063 37541661
kableExtra::kable(head(results[[2]]))
Component AUC MaxInt SNR peak_cor foundRT pop ID NAME m.z tr mean na.rm trold
131 27673048 7013989 8.549146 0.9426621 52.85621 13.000000 131 D-(+)-Glucose 203.0526 52.85621 52.85621 TRUE 54.6
1576 8932499 2052563 9.639474 0.9591649 111.99854 14.166667 1576 L-Tyrosine-d2 184.0937 111.99854 111.99854 TRUE 109.2
1577 31303341 9601707 5.337986 0.9473591 529.66261 7.666667 1577 Indole-3-acetic acid-d5 181.1020 529.66261 529.66261 TRUE 529.2
1578 23253705 6981963 8.124268 0.9759577 89.14154 8.333333 1578 Dopamine-d4 158.1111 89.14154 89.14154 TRUE 88.2
1583 110702250 30890172 11.890113 0.9755802 240.41981 10.666667 1583 L-Phenylalanine-d2 168.0988 240.41981 240.41981 TRUE 240.0
179 37352282 8723543 8.876178 0.9572953 53.16109 14.500000 179 L-Glutamic acid 148.0604 53.16109 53.16109 TRUE 52.8

Other results include tables with the other metrics (Max. Int., SNR, peak_cor and points over the peak) and are saved into the output folder.

maxint <- read.csv("vignette_data/output/int_table.csv",check.names = FALSE)
SNR <- read.csv("vignette_data/output/snr_table.csv",check.names = FALSE)
peak_cor <- read.csv("vignette_data/output/peakcor_table.csv",check.names = FALSE)
pop <- read.csv("vignette_data/output/pop_table.csv",check.names = FALSE)
kableExtra::kable(head(pop))
Component 230523s016_QC1_1.mzML 230523s017_QC2_1.mzML 230523s018_A081.mzML 230523s020_A254.mzML 230523s021_A158.mzML 230523s022_A521.mzML 230523s028_QC1_2.mzML 230523s029_QC2_2.mzML 230523s030_A043.mzML 230523s031_A551.mzML 230523s032_A566.mzML 230523s033_A513.mzML 230523s040_QC1_3.mzML 230523s041_QC2_3.mzML
1 131 9 14 14 15 14 15 14 14 8 14 14 13 14 13
2 1576 14 14 13 13 12 13 14 15 14 13 13 18 14 14
3 1577 7 8 8 7 8 7 8 7 8 7 7 7 8 8
4 1578 8 9 8 8 8 8 9 8 8 8 8 8 8 8
5 1583 9 9 11 14 9 11 10 10 11 10 10 9 14 12
6 179 15 15 15 16 16 15 15 14 14 14 14 12 14 14
